Steel Prop Cup Nut

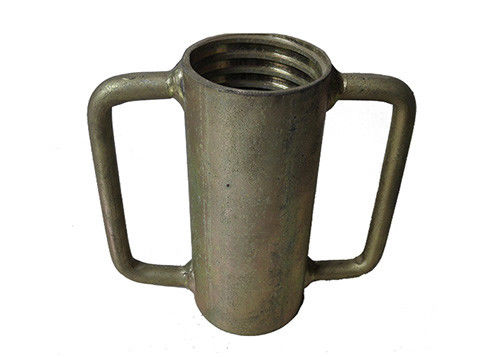

Large Image : Steel Prop Cup Nut

Product Details:

Place of Origin:	Hebei, China (Mainland)
Brand Name:	WST
Model Number:	WSTPCN

Payment & Shipping Terms:

Packaging Details:	Ton bag , steel pallet or customized
Delivery Time:	15-25 days after the deposit payment
Supply Ability:	50000 Piece/Pieces per Week

Contact Now

Detailed Product Description

Material:	Q235 Steel	Weight:	1kg
Pitch:	6.35MM Or Cutomized	Thread:	Rolling Thread Or Machin
Certificate:	CMA	Color:	Self Color, Silver, Golden
Finish:	Nutural, Galvanized,HD	Usage:	To Adjust And Fix The He

Product Description

Prop Cup Nut Type	Steel Prop Nut	Casted Iron prop Nut A	Casted Iron prop Nut B	Casted Iron prop Nut C
Pics
Material	Q235 Steel	Ductile casted iron QT450-10
Weight	1KG	0.95kg	1.55kg	1.65kg
Size	Outer Tube:70X3.5X135MM Inner Tuber:64X3.5X40MM
Finish	Self Color,Electro Galavnized,HDG
Usage	The prop cup nut were used to adjust the height of the shoring prop
OEM/ODM	With samples or detailed drawing,More types of prop nuts could be customized

Product Photos

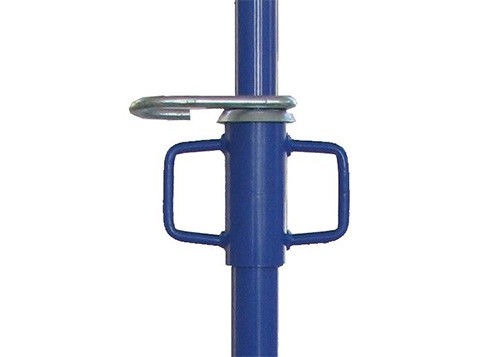

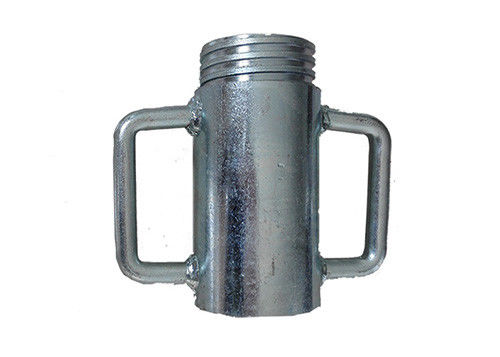

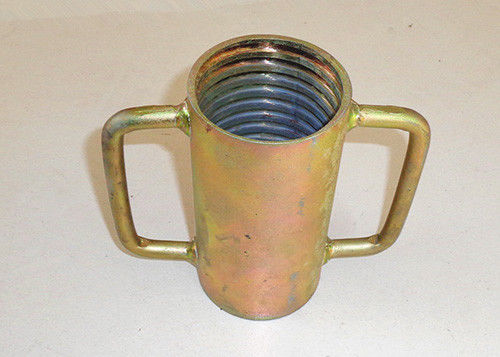

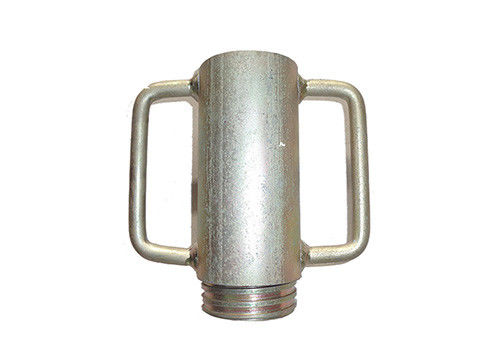

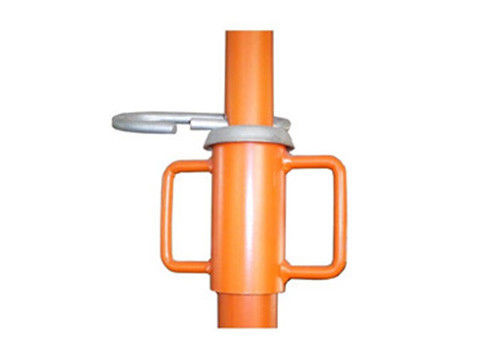

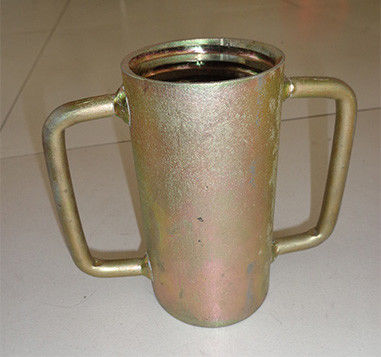

Steel Prop Cup Nut 4

Steel Prop Cup Nut 5

Steel Prop Cup Nut 6

Packaging & Shipping

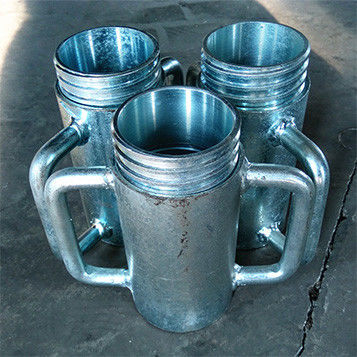

Steel Prop Cup Nut 7
Related Product

Contact Details

Cangzhou Weisitai Scaffolding Co.,Ltd.

Contact Person: Sunny Feng | Eva Che | Edison Huang

Tel: +86-13731704301 | +86-17865358038 | +86-19531150731

Fax: +86-317-5569940

Other Products

Prop Sleeve

Material: Q235 steel
Length: 195-400MM,customized
Thickness: 2.5mm / 3.0mm / 3.5mm / 3.75mm / 4mm
Diameter: 60/76MM

Prop Nut

Material: Ductile casted iron QT450
Weight: 0.35,0.47,0.5,0.6,0.75/0.85kg etc
Pitch: 4/6/6.35MM or cutomize
Thickness: OD60mm

Prop G Pin

Material: Q235 or 45 Steel
Weight: 0.32/0.45/0.78kg
Size: OD12/14/16MM
Finish: Self color, Electric Galvanization

Prop Wire Pin

Material: Q235 or 45 Steel
Size: 100/110/120MM etc
Weight: 0.08/0.12kg etc
Finish: Self color, Electric Galvanization

Prop Chain Pin

Material: Q235/45# steel
Diameter: OD12/11MM
Length: 100/110/120MM etc
Weight: 0.11/0.15kg etc
