Prop Sleeve

Prop Sleeve
Prop Sleeve Prop Sleeve Prop Sleeve Prop Sleeve Prop Sleeve Prop Sleeve Prop Sleeve Prop Sleeve

Large Image :  Prop Sleeve

Product Details:

Place of Origin: Hebei, China (Mainland)
Brand Name: WST
Model Number: Scaffolding System

Payment & Shipping Terms:

Packaging Details: Ton bag or steel pallet or customized
Delivery Time: 15-25 days after the deposit payment
Supply Ability: 80000 Piece per day
Contact Now
Detailed Product Description
Material: Q235 Steel Length: 195-400MM,customized
Thickness: 2.5mm / 3.0mm / 3.5mm / 3.75mm / 4mm Diameter: 60/76MM
Hole Zie: 14*150MM,16*150MM Etc Pitch: 6.35MM
Weight: 0.58-1.02kg Craft: Rolling Thread Or MachineThread
Finish: Nutural, Galvanized,HDG Color: Self Color, Silver, Golden



Product Description



Scaffolding Parts Steel Prop Sleeve
Picture Diameter 60mm or customzied Material Q235 Steel
Prop Sleeve 0 Tube Length 195-400MM , or customized Finish

Nutural,

Galvanized,HDG
Thickness 2.5/3/3.5/3.75/4mm Color

Self Color,

silver, golden
Hole

14*150MM,16*140MM

etc

 Thread Rolled or machine thread
Pitch 6.35MM Application

Adjust the height of

steel props





Prop Sleeve Size And Weight Chart
Length 200mm 0.58kg Length 200mm 0.72kg Length 200mm 0.78kg
Length 210mm 0.62kg Length 210mm 0.76kg Length 210mm 0.78kg
Length 220mm 0.65kg Length 220mm 0.80kg Length 220mm 0.888kg
Length 230mm 0.68kg Length 230mm 0.83kg Length 230mm 0.93kg
Length 240mm 0.71kg Length 240mm 0.86kg Length 240mm 0.98kg
Length 250mm 0.74kg Length 250mm 0.90kg Length 250mm 1.02kg



Product Photos

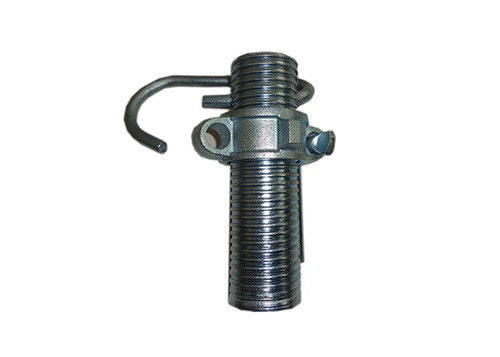

Prop Sleeve 1

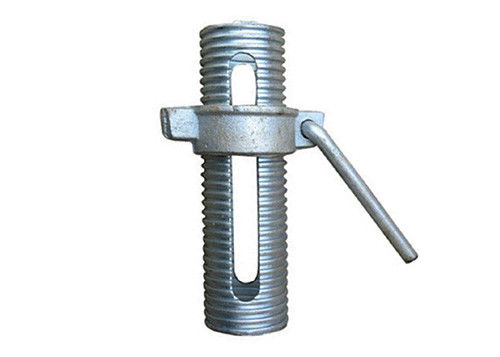

Prop Sleeve 2

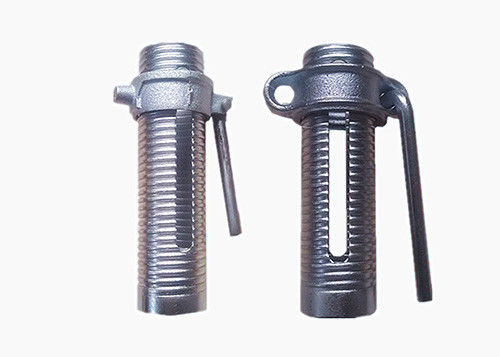

Prop Sleeve 3

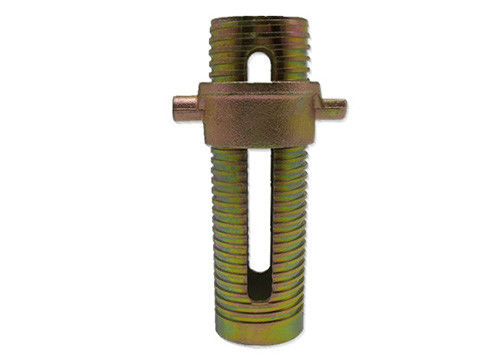

Prop Sleeve 4



Features

1. Customized Size, OEM
2. Direct factory of prop sleeve and all prop accessories, Lower price and Shorter production time
3. Export 2000 tons /year to 33 countries , Quantity proves Quality.
4. Inspection from raw material to finished product, every proceduer is under inspection, test report could be supplied

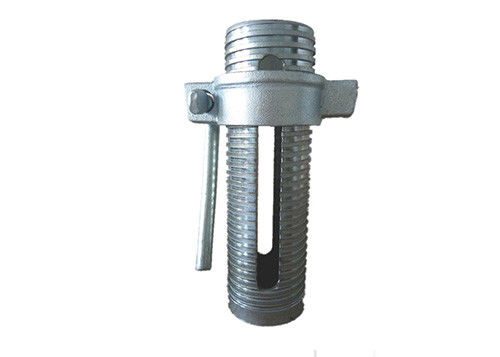

Prop Sleeve 5



Certification

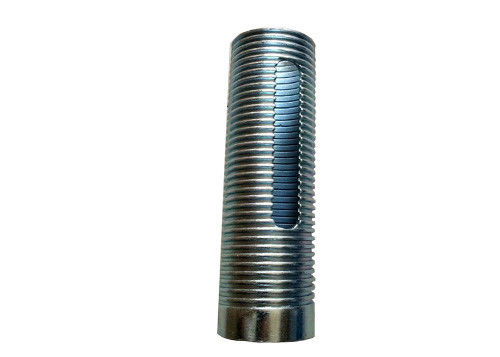

Prop Sleeve 6

Package & Shipping

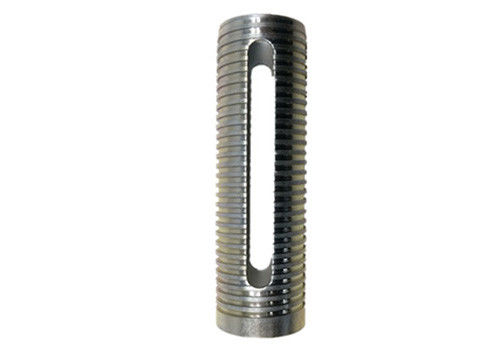

Prop Sleeve 7
