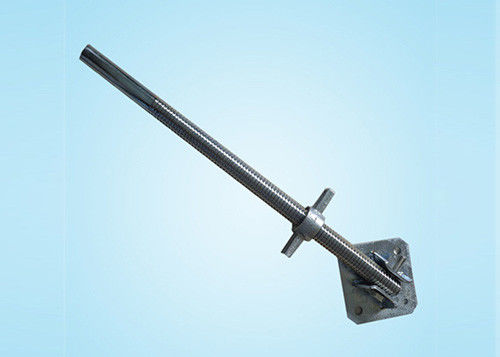

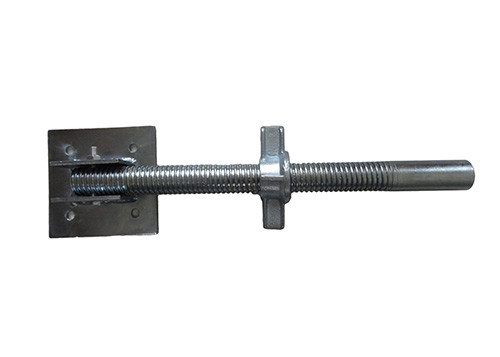

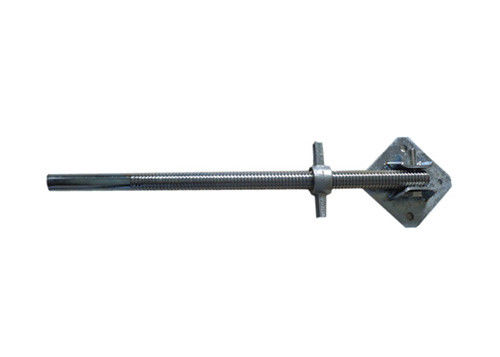

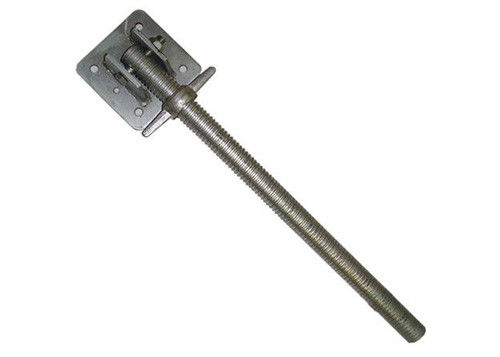

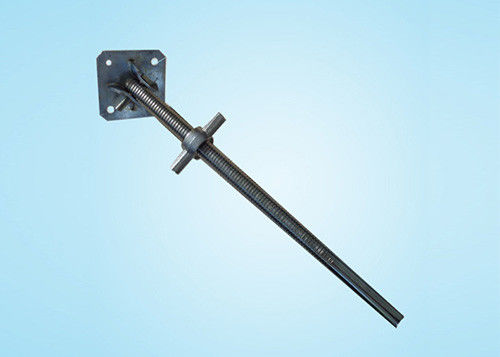

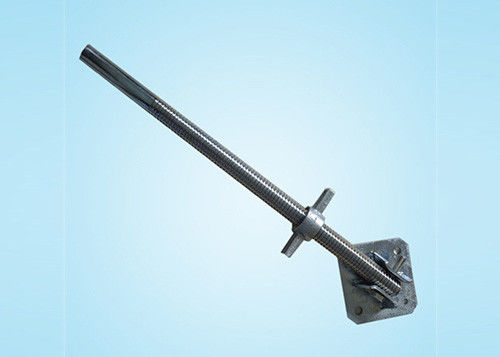

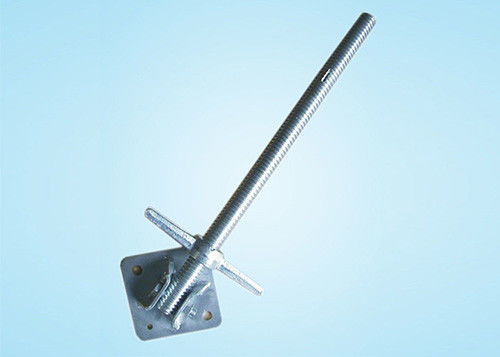

Q235 Steel Scaffolding Jack Base With Swivel Plate

Quick Production Q235 Swivel Screw Jack Universal Scaffolding


Specification

Scaffolding types	U head	Jack base	Swivel Jack base	Scaffolding base plate
Sample
Weight	1-5kg	1-5kg	1-5kg	1-3kg
Material	Q235 or 20# Steel	Q235 or 20# Steel	Q235 or 20# Steel	Q235 or 20# Steel
Diameter	28/30/32/34/35/ 38/48MM etc	28/30/32/34/35/ 38/48MM etc	28/30/32/34/35/ 38/48MM etc	28/30/32/34/35/ 38/48MM etc
Length	200/280/600/760MM etc, or customized	200/280/600/760MM etc, or customized	200/280/600/760MM etc, or customized	100MM,150MM or customized
Floor size	120*120*50*4MM 120*120*50*5MM 150*150*50*4MM 150*150*50*5MM etc or customized	120*120*5MM 150*150*5MM etc or customized	20*120*5MM 150*150*5MM etc or customized	20*120*5MM 150*150*5MM etc or customized
Surface treatment	Natural ,painted, Electro galvanized,HDG	Natural ,painted, Electro galvanized,HDG	Natural ,painted, Electro galvanized,HDG	Natural ,painted, Electro galvanized,HDG
Color	Black,silver,or colorful galvanized	Black,silver,or colorful galvanized	Black,silver,or colorful galvanized	Black,silver,or colorful galvanized


Product Application

Scaffolding Swivel Jacks locate in the bottom of the standards, they provide adjustment to cope with variations in ground levels, and they have the ability to swivel to cope with slopes etc. With various size, the compressive strength of each scaffolding swivle jack is from 80KN to 230KN, different surface finish (self finish,painted,electro galvanized,hot dip galvanized) and colors are also available

Related Products


Production Process


Packaging & Shipping


FAQ

1. Q: Are you real factory ?
A: Yes, we are direct factory and we have our own casting iron factory . we have 3 factories established on 2010.


2. Q: Do you have customers in our country ?
A: Not sure, Our 100+ customers are from 30+ countries, including Thailand, Singapore, Russian, Korea,USA,UK,Norway,UAE ,Bangladesh etc, Just contact us to confirm and experience our service and product directly.


3. Q: How about your production and export amount ?
A: 19000T/year, about 70*20ft container per month.


4. Q: How about the price ?
A: High cost -effective .
First, we are near the origin of steel ,with big order amount, we get relatively cheaper price of steel raw material ;
Second,we have our own inspection regulation and system,from the raw material to the the finished products, quality is ensured
Third, our professional and responsible service have got good feedbacks from our customers.
Forth, "less profit but big turnover " is our perpetual business principle.


5. Q: How can we ensure the quality ?
A : First, Only qualified raw material with certification is acceptable.
Second,quality check is operated by hand.
Three, free samples are always available.
Fourth,once quality problems occur, just sent us pics for confirmation, once confirmed, money or goods will be given as compensation.


6. Q: Where are your factory located, how can we go to your factory ?
A : We are in Botou, Cangzhou ,Hebei province, the hometown of casting products.
Take high speed trains to Cangzhou Station, or take plane to Tianjin airport or Beijing airport, then we could go to pick you up. From cangzhou station to our factory, it will cost 30mins; from Tianjin or Beijing Airport to our factory, it will cost about 3-4hours.
